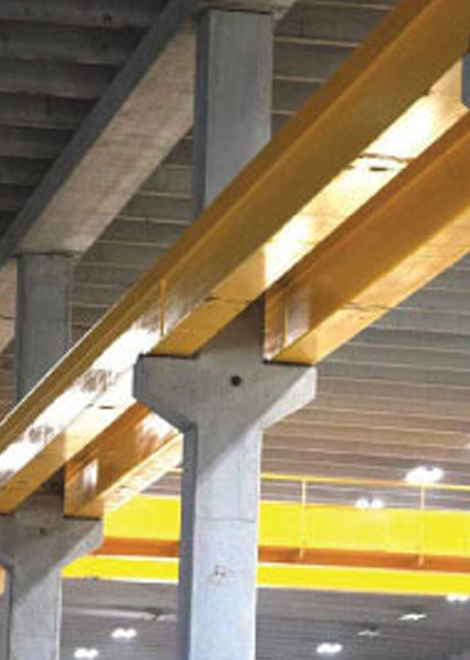

Columns and Beams
Precast columns & beams provide a versatile and flexible solution to the structural design of any project thereby offering considerable benefits to all the stakeholders both in terms of time as well as money. HPBS offers a wide array of technical options in both these items which can be used in a variety of applications as detailed below. Our standard sections for beams can be designed both with normal as well as pre-stressed reinforcements and can be designed in various shapes such as rectangular shaped beams, I girders, L sections and many other project specific shapes / designs. As and when required, the beams can also be designed to provide exposed reinforcements for composite structure by taking into account the concrete topping or screed on top. Using pre-stressed strands in beams also enables the usage of beams over a longer span thereby allowing more flexibility and open spaces in the project.Columns are typically used to support beams and spandrels in the various applications and precast concrete structural systems of all types. They can be typically designed as single-tier or multilevel and in various shapes (rectangular, circular, irregular) and sizes depending on the project requirements. Their sizes and shapes can also be varied to satisfy both architectural and structural requirements of any project. The use of precast columns in any project is a win-win situation for all stakeholders as they offer a high quality product at extremely fast installation speeds thereby eliminating the need of any kind of shuttering / curing as in the case of traditional methodology
1. Considerable saving in time and cost.
2. Better quality & more durable end product (due to controlled off-site production).
3. Easy to achieve longer spans using pre-stressed beams.
4. Significant reduction in site manpower requirement.
5. Better overall site management with increased safety.
1. Schools.
2. Multi-Level parking structures.
3. Labor Accommodations.
4. Residential and commercial complexes.
5. Industrial warehouses.

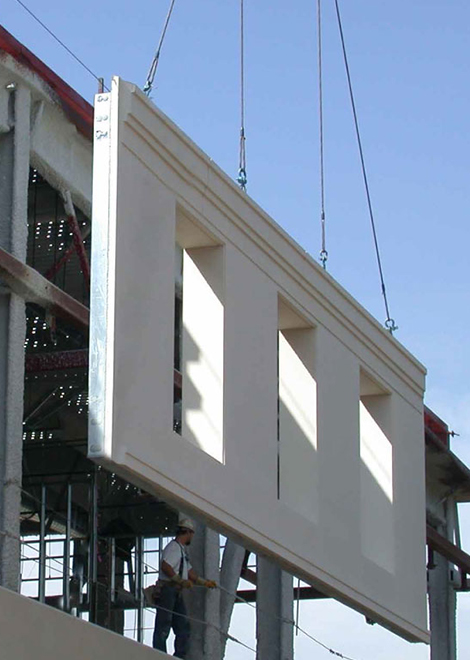

Wall Panel
HPBS’ design team thoroughly performs an in-depth analysis of the requirements of each project and proposes
custom made solutions meeting all project requirements. HPBS offers a wide variety of precast wall panels including:
Solid Panels: They are usually used as interior panels in any structure and can be designed either as load
bearing panels (for transferring horizontal & vertical forces) or as non load bearing partition walls. Standard
thickness of these elements ranges from 100mm, 120mm, 150mm, 180mm, 200mm and 250mm however any
special thicknesses as required in the project can also be fabricated.
Sandwich Panels:These panels are manufactured with built-in insulation material and can be used both as
cladding panels as well as load bearing panels. They are widely used in villas, residential buildings & industrial
complexes where efficient thermal and noise control is required. Standard thickness of these elements ranges
from 200mm, 210mm, 230mm, 250mm, 270mm and 300mm however any special thicknesses as required by the
client can also be produced.
Cladding Panels: They are normally single skin units with thickness ranging from 100mm, 120mm, 150mm
and 180mm however they can also be designed as sandwich panels (if required). HPBS offers multiple finishing
options for these elements such as acid etched, smooth or coarse ground, exposed aggregate etc… which can
match the various requirements in different projects
1. Provides custom made solution for each individual project.
2. Huge variety of pre-finished options available; No plastering required.
3. Provides high level of thermal & noise insulation.
4. Superior fire resistance.
5. Reduced site manpower..
6. Offers smooth internal surface, ready to receive paint.
7. Electrical conduits and boxes can be casted into panels during production phase.
1. Schools.
2. Multi-Level parking structures.
3. Labor Accommodations.
4. Residential and commercial complexes.
5. Industrial warehouses.

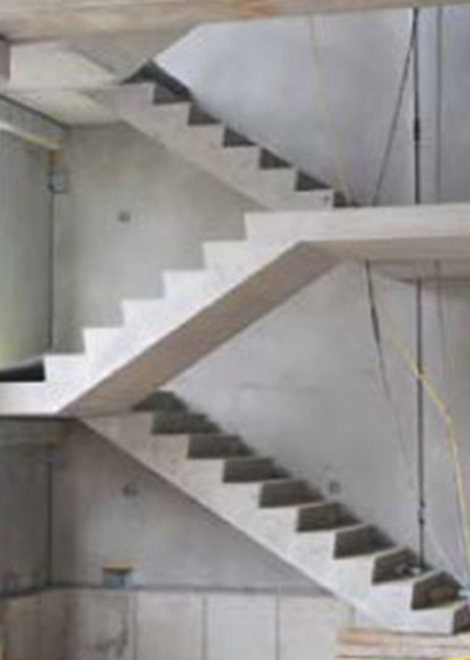

Staircases
HPBS team can design & produce various shapes & sizes of staircase elements as per the individual requirement of each project. Stair flights and landings are produced in the factory in controlled environment in special moulds designed and fabricated for this purpose. While the staircases are being produced, site construction work can proceed to upper levels thereby allowing faster installation speed and saving time and money
1. Unobstructed and safe access to the building during construction time.
2. Simultaneous installation with other precast elements.
3. High quality product with excellent surface finish.
4. Can be used immediately after installation (no waiting period).
1. Schools.
2. Villas
3. Labor Accommodations.
4. Residential and commercial complexes.
5. Industrial warehouses.

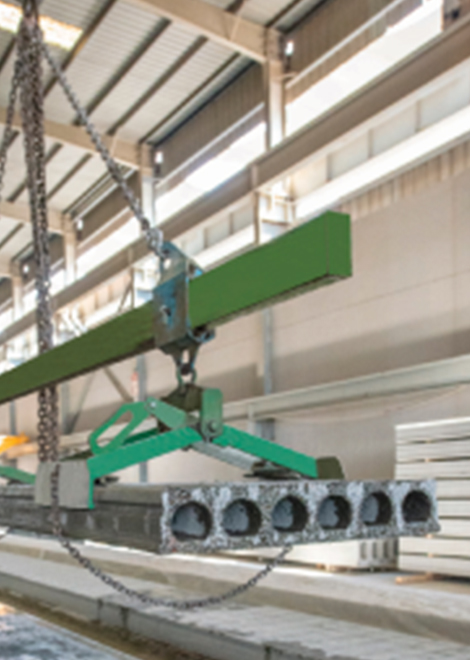

Hollow core slabs
Hollow core slabs are pre-stressed concrete elements which are casted using a highly advanced automated extrusion technique. These slabs offer an economical and efficient floor/roof system for any project by giving maximum structural strength with minimum weight. As they are 40-50% lighter than conventional RC slabs they offer numerous benefits to engineers as well as architects while designing any project. The standard width of these slabs is 1200mm with multiple cores running across the length of each slab. These cores are also used for placing electrical cables and pipes thus reducing the overall construction cycle & by providing a convenient option for MEP contractors as well. HPBS manufactures these slabs in varying thickness ranging from 150mm, 200mm 265mm, 320mm, 400mm & the largest being 500mm thick. These slabs can be designed to span up to 18m depending on the loading conditions and project requirements.
1. Considerably cheaper as compared to other system.
2. Offers longer spans and greater loads than conventional slab of same depth.
3. Reduction in weight leads to an overall lighter structural framing leading to cost savings.
4. Provides enormous design flexibility.
5. Superior fire resistance.
6. Speed and ease of construction.
7. Highly automated production under controlled environment.
8. Offers smooth soffit, ready to following trades.
1. Schools.
2. Villas
3. Labor Accommodations.
4. Residential and commercial complexes.
5. Industrial warehouses.
6. Multi-level parking structures

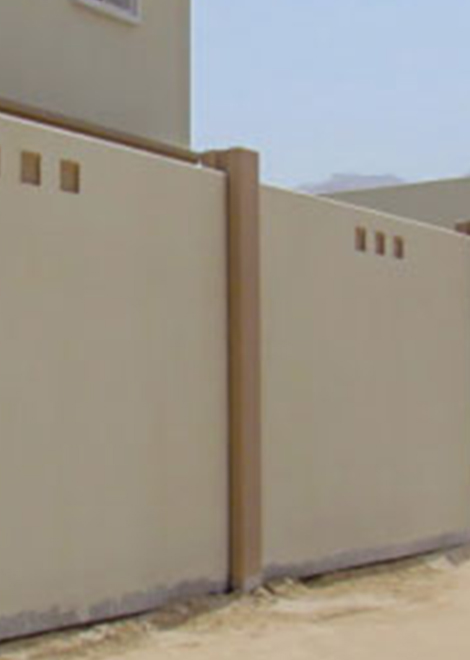

Boundary Walls
With the onset of high demand for boundary wall with the U.A.E, HPBS has been successful in developing a total precast solution for this item. We currently utilize the best modern concrete technology to offer a pioneering & cost effective engineering solution which can be tailor made to suit various kind of project requirements. Our boundary wall system offers a high quality product together with architectural freedom wherein all the necessary elements required for this scope can be custom designed to meet individual project requirements in terms of height, width, design features, colors & shapes.
1. Flexibility in terms of design, color & shape.
2. Low maintenance.
3. High quality surface finish.
4. Reduced construction period.
1. Schools.
2. Villas
3. Private and public farms / gardens.
4. Residential and commercial complexes.

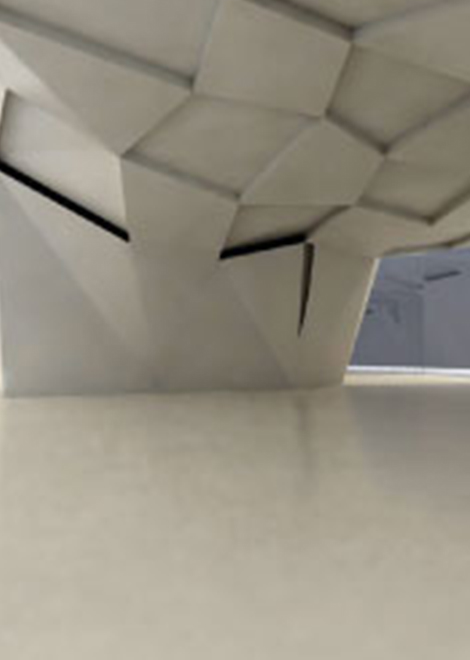

Glass Reinforced Concrete (GRC)
GRC is one of the most unique and prominent building materials widely used in this region specifically in projects requiring high architectural detailing. GRC elements are strong and daunting yet light in weight and speedy to install. These elements can be molded into any shape and design to meet individual project requirements and offer the architect complete freedom to showcase his architectural creativity in the project. HPBS has participated in various projects involving intricate GRC designs and patterns and has been highly successful in achieving client satisfaction by demonstrating our skills and expertise in handling such delicate elements.
1. Light in weight.
2. Weather resistant.
3. Easy to transport & install.
4. Low maintenance requirements.
5. Environment friendly.
6. Reduces structural load on the building.
7. Suitable for long spans & curvature.
1. Schools & Universities.
2. Villas
3. Mosques
4. Residential and commercial Buildings.
5. Hotels & Malls
